BALLISTIC SAFETY HELMETS
FOR SPECIAL TASK FORCES

For many years, we have been equipping special task forces around the world with the latest highly effective ballistic safety helmets, as the result of many years of developing the best ballistic protection against bullet shots and projectiles.

  • ZENTURIO C1300

    Special task force helmet
    Titanium hybrid
    Titanium

  • HOPLIT F1000

    First responder helmet
    Titanium Hybrid
    Titanium

  • HOPLIT JUMP

    Tactical helmet
    Titanium Hybrid
    Titanium

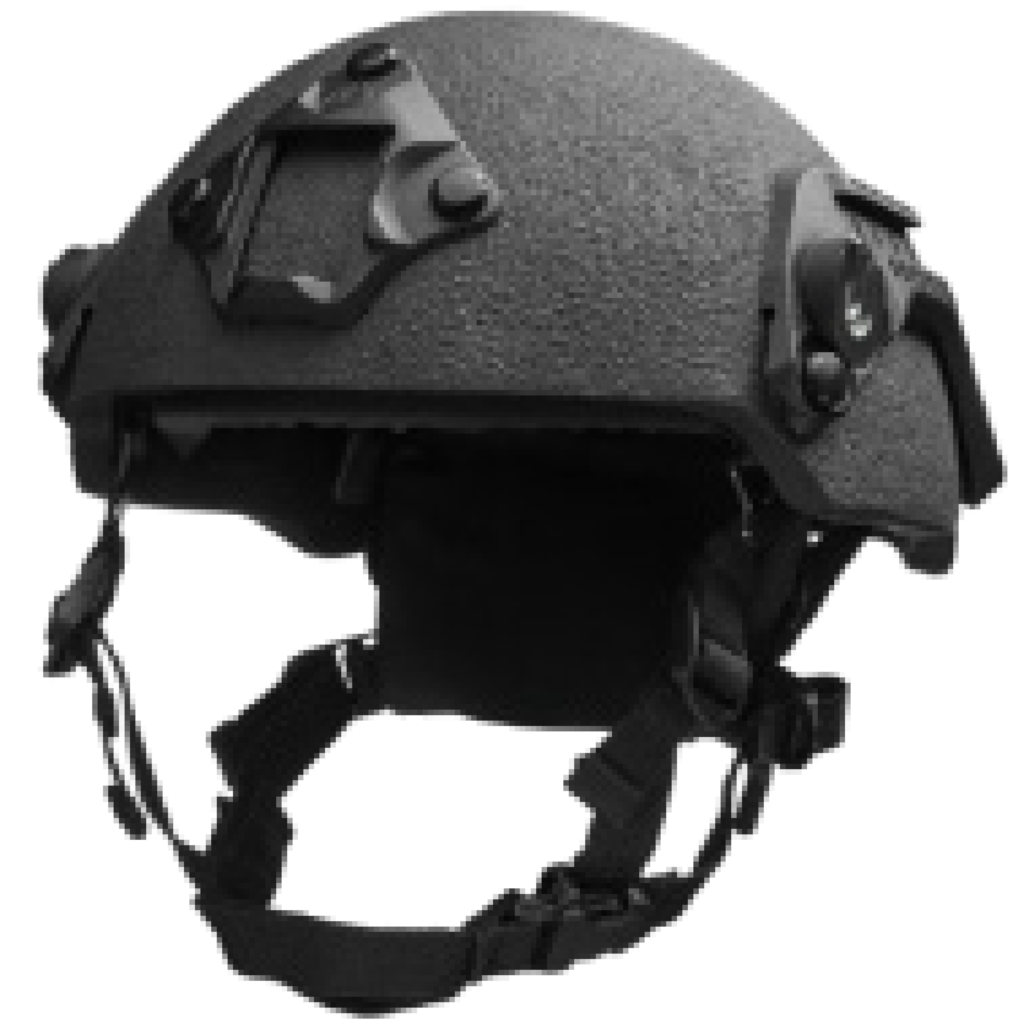

ZENTURIO C1300H –Titanium hybrid

Special task force helmet
// 1 Technische Daten

Design

Curve -C-

Total surface

ca. 1.420 cm²

Ballistic protective surface

ca. 1250 cm² (Stop effect and trauma < 25J with VPAM 3)

Weight

from 2570 g, helmet and interior fittings, 14mms straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL calotte)
Special size on request (L calotte)

Colours

All RAL colours

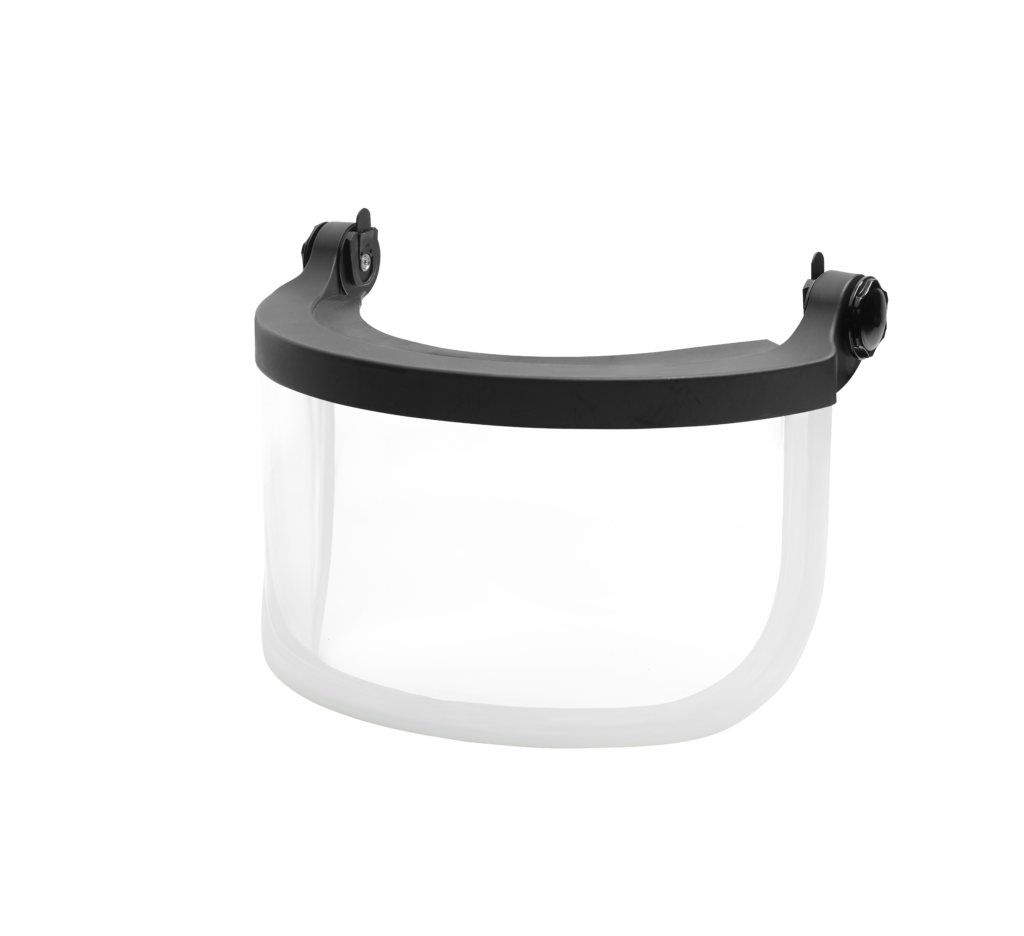

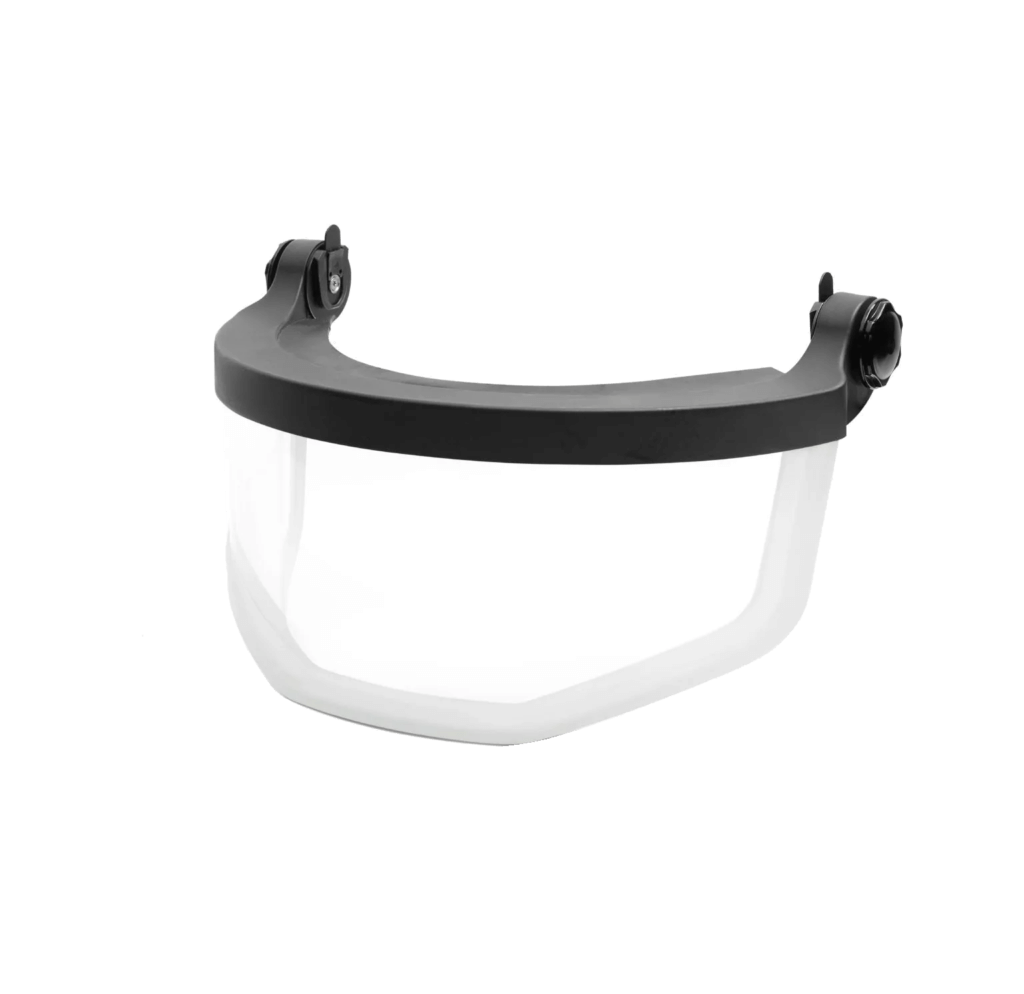

Ballistic visor

19 mm x 150 mm (ca. 1400 g)

// 2 Zubehör

Accessories

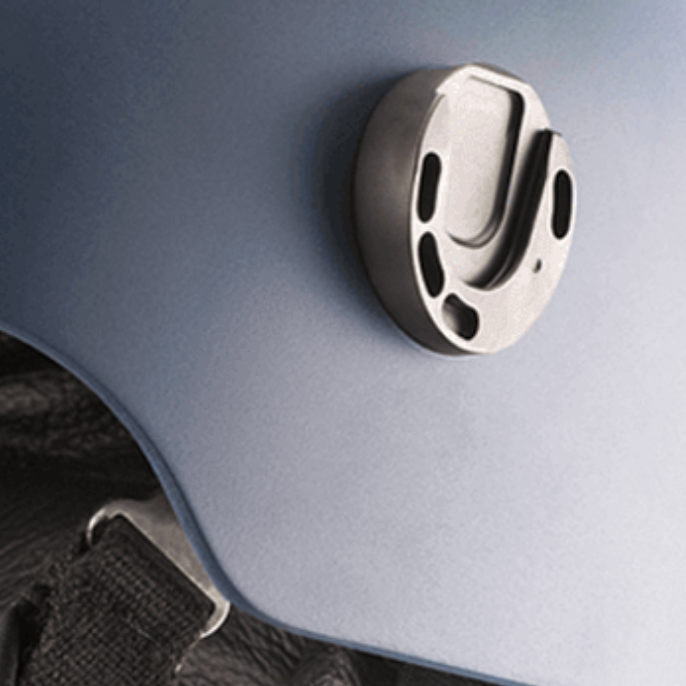

19mm straps, BOA, modular quick-visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor covers

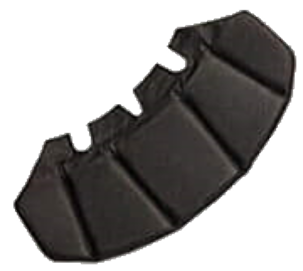

Neck protection

Ballistic neck protection, impact protection, neck protection

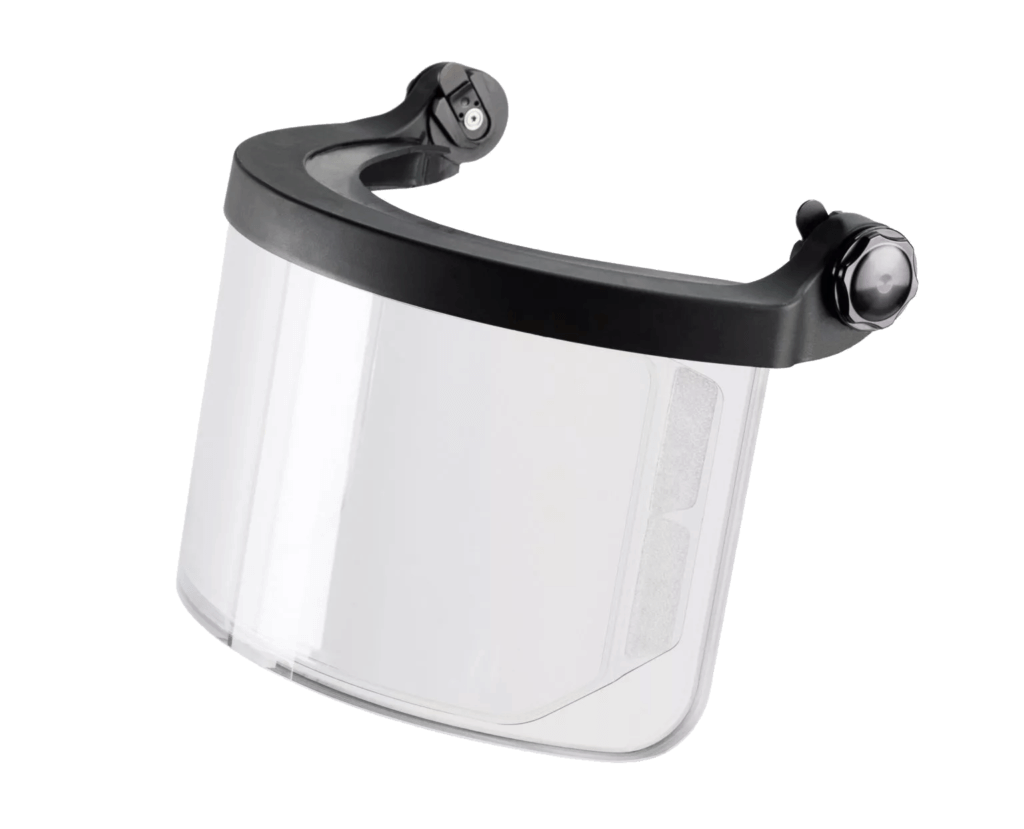

Visors

Impact visors, splinter visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) of various sizes and weights.
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level

In accordance with test procedures and requirements of the Technical Directive for overall system “Ballistic helmet“ status 05/2010:

  • Chemical behaviour (3.2) sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. in accordance with TECHNICAL DIRECTIVE FOR3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, bullet-resistant helmet with visor and neck protection” – test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values i < 5J



Additional tests

  • Bullet-resistant fitting points 45 degrees, +20° C
  • Bullet-resistance distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009,
  • bullet-resistant helmet with visor and neck protection” – test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009,
  • bullet-resistant helmet with visor and neck protection” – test level 3 of APR 2006, +20° C
  • Residual energy with 3M™ Peltor™ ComTac™“ according to “VPAM HVN 2009,
  • bullet-resistant helmet with visor and neck protection” – test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

Further projectiles
according to VPAM 4:
.44 Rem.Mag. FMJ/FN/SC
.357 Magnum FMJ/CB/SC
Other:
9 mm x 19 FMJ/RN/SC CN316 DM41
9 mm x 19 Green Range DM298
.22 Win. Mag. TMJ
9 mm x 19 FMJ/RN/SC CN40 m/39b FFV
Tokarev 7.62 mm x 25 FMJ/RN/SC CN85
Tokarev 7.62 mm x 25 FMJ/RN/FeC CN83

STANAG 2920: V50 = 620 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g

Zenturio C1300 -Titanium

Special task force helmet
// 1 Technische Daten

Design

Curve -C-

Total surface

ca. 1.420 cm²

Ballistic protective surface

ca. 1250 cm² (Stop effect and trauma < 25J with VPAM 3)

Weight

from 2210 g, helmet and interior fittings, 14mm straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL calotte)
Special size on request (L calotte)

Colours

All RAL colours

Ballistic visor

19 mm x 150 mm (ca. 1400 g)

// 2 Zubehör

Accessories

19mm straps, BOA, modular quick visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor cover.

Neck protection

ballistic neck protection, impact protection, neck protection

Visors

Impact protection visors, splinter protection visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) with different measurements and weights
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level

According to test procedure and requirements of Technical Directive for overall system “Ballistic Helmet” status 05/2010:

  • Chemical behaviour (3.2) Sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. according to Technical Directive for 3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 Section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values < 5J



Additional tests

  • Bullet-proof fixing points 45 degrees, +20° C
  • Bullet-proof distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection”– test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – test level 3 of APR 2006, +20° C
  • Residual energy with 3M™ Peltor™ ComTac™“ according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

according to VPAM AND #01
9 x 19 mm QD PEP II/s
9 x 19 mm Action 4
9 x 19 mm Pist Pat 41

STANAG 2920: V50 = 300 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g

HOPLIT F1000 – Titanium Hybrid

First responder helmet
// 1 Technische Daten

Design

Flat -F-

Total surface

ca. 1.105 cm²

Ballistic protective surface

ca. 980 cm² (Stop effect and trauma < 25J with VPAM 3

Weight

from 2010 g, helmet and interior fittings, 14mm straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL calotte)
Special size on request (L, XXL calotte)

Colours

All RAL colours

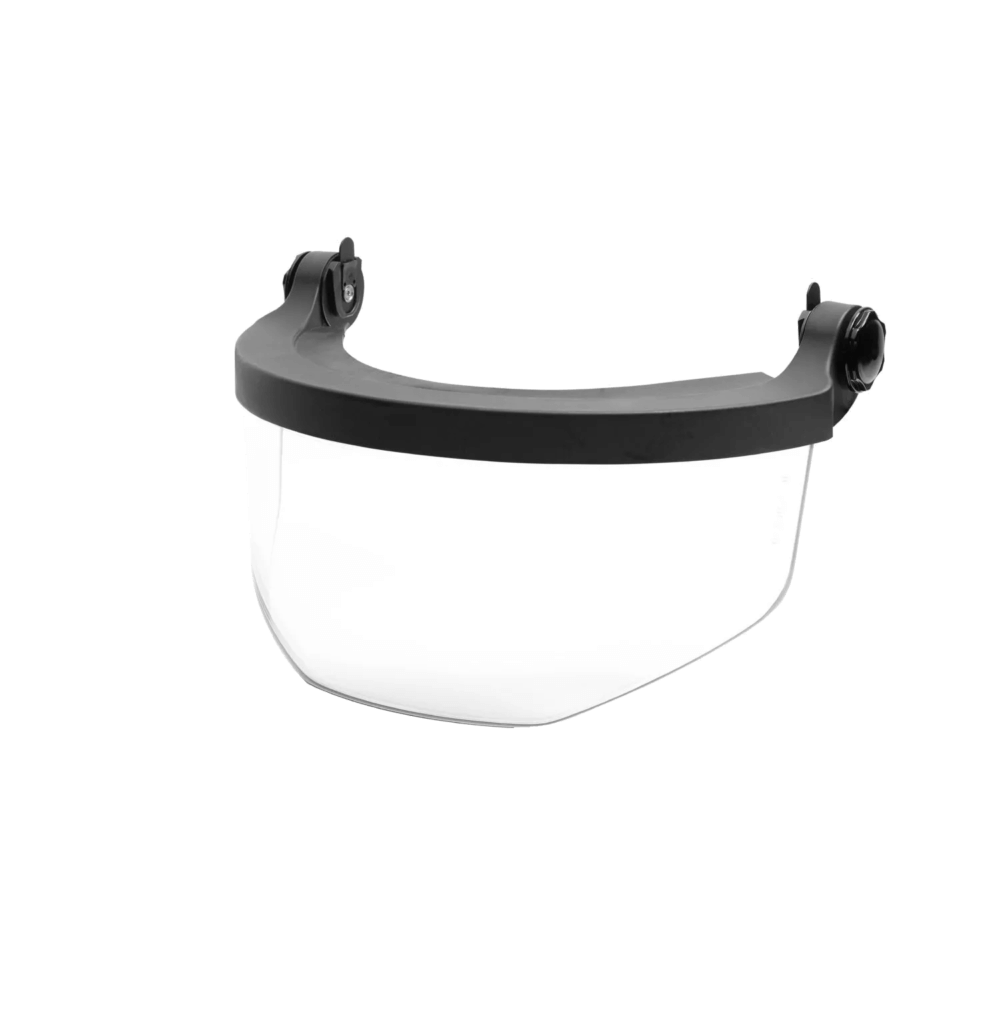

Ballistic visor

19 mm x 120 mm (ca. 1000 g)

// 2 Zubehör

Accessories

19mm straps, BOA, modular quick visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor cover

Neck protection

ballistic neck protection, impact protection, neck protection

Visors

Impact protection visors, splinter protection visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) with different measurements and weights.
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level
According to test procedure and requirements of Technical Directive for overall system “Ballistic Helmet” status 05/2010:

  • Chemical behaviour (3.2) sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. according to Technical Directive for 3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 Section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values < 5J



Additional tests

  • Bullet-proof fixing points 45 degrees, +20° C
  • Bullet-proof distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

Further projectiles
according to VPAM 4:
.44 Rem.Mag. FMJ/FN/SC
.357 Magnum FMJ/CB/SC
Other:
9 mm x 19 FMJ/RN/SC CN316 DM41
9 mm x 19 Green Range DM298
.22 Win. Mag. TMJ
9 mm x 19 FMJ/RN/SC CN40 m/39b FFV
Tokarev 7.62 mm x 25 FMJ/RN/SC CN85
Tokarev 7.62 mm x 25 FMJ/RN/FeC CN83

STANAG 2920 V50 = 620 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g

HOPLIT F1000 – Titanium

First responder helmet
// 1 Technische Daten

Design

Flat -F-

Total surface

ca. 1.105 cm²

Ballistic protective surface

ca. 980 cm² (Stop effect and trauma < 25J with VPAM 3)

Weight

from 1.860 g, helmet and interior fittings, 14mm straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL calotte)
Special size on request (L, XXL calotte)

Colours

All RAL colours

Ballistic visor

19 mm x 120 mm (ca. 1000 g)

// 2 Zubehör

Accessories

19mm straps, BOA, modular quick visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor cover.

Neck protection

ballistic neck protection, impact protection, neck protection

Visors

Impact protection visors, splinter protection visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) with different measurements and weights.
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level

According to test procedure and requirements of Technical Directive for overall system “Ballistic Helmet” Status 05/2010:

  • Chemical behaviour (3.2) Sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. according to Technical Directive for 3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 Section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values < 5J



Additional tests

  • Bullet-proof fixing points 45 degrees, +20° C
  • Bullet-proof distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009,

Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

according to VPAM AND #01
9 x 19 mm QD PEP II/s
9 x 19 mm Action 4
9 x 19 mm Pist Pat 41

STANAG 2920: V50 = 300 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g

HOPLIT JUMP –Titanium Hybrid

Tactical helmet
// 1 Technische Daten

Design

Jump

Total surface

ca. 1091 cm²

Ballistic protective surface

ca. 962 cm² (Stop effect and trauma < 25J with VPAM 3)

Weight

from 1900 g, helmet and interior fittings, 14mm straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL Calotte)
Special size on request (L, XXL calotte)

Colours

All RAL colours

Ballistic visor

19 mm x 120 mm (ca. 1000 g)

// 2 Zubehör

Accessories

19mm straps, BOA, modular quick visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor cover.

Neck protection

ballistic neck protection, impact protection, neck protection

Visors

Impact protection visors, splinter protection visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) with different measurements and weights.
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level

According to test procedure and requirements of Technical Directive for overall system “Ballistic Helmet” status 05/2010:

  • Chemical behaviour (3.2) Sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. according to Technical Directive for 3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 Section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values < 5J



Additional tests

  • Bullet-proof fixing points 45 degrees, +20° C
  • Bullet-proof distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

Further projectiles
according to VPAM 4:
.44 Rem.Mag. FMJ/FN/SC
.357 Magnum FMJ/CB/SC
Other:
9 mm x 19 FMJ/RN/SC CN316 DM41
9 mm x 19 Green Range DM298
.22 Win. Mag. TMJ
9 mm x 19 FMJ/RN/SC CN40 m/39b FFV
Tokarev 7.62 mm x 25 FMJ/RN/SC CN85
Tokarev 7.62 mm x 25 FMJ/RN/FeC CN83

STANAG 2920 V50 = 620 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g

HOPLIT JUMP – Titanium

Tactical helmet
// 1 Technische Daten

Design

Jump

Total surface

ca. 1091 cm²

Ballistic protective surface

ca. 962 cm² (Stop effect and trauma < 25J with VPAM 3)

Weight

from 1750 g, helmet and interior fittings, 14mm straps, without accessories and visor**

Head sizes

Standard size 48-62 (XL calotte)
Special size on request (L, XXL calotte)

Colours

All RAL colours

Ballistic visor

19 mm x 120 mm (ca. 1000 g)

// 2 Zubehör

Accessories

19mm straps, BOA, modular quick visor adapter, rails, shroud, fleece applications, helmet pouches, helmet and visor cover.

Neck protection

ballistic neck protection, impact protection, neck protection

Visors

Impact protection visors, splinter protection visors (STANAG), ballistic visors (Multihit, VPAM 2, VPAM 3, TR) with different measurements and weights.
Can be worn with 3M™ Peltor™ ComTac™ XPI

Protection level

According to test procedure and requirements of Technical Directive for overall system “Ballistic Helmet” status 05/2010:

  • Chemical behaviour (3.2) Sodium hydroxide, brine, sulphuric acid, acetone, super gasoline etc. according to Technical Directive for 3.2
  • Flammability (3.3) according to DIN EN 137, No. 7.4.1.4
  • Impact absorption (3.4) according to DIN EN 397 Section 5 + 6

Fulfils the ballistic requirements of “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of VPAM APR 2006 (9 mm x 19 DM 41 415 m/s +/- 10 m/s) with typical values < 5J



Additional tests

  • Bullet-proof fixing points 45 degrees, +20° C
  • Bullet-proof distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection”– Test level 3 of APR 2006, +20° C
  • Residual energy distance to helmet rim 15 + 5 mm according to “VPAM HVN 2009, Bullet-proof helmet with visor  and neck protection” – Test level 3 of APR 2006, +20° C

Additional specifications

(Values according to projectile testing)*

according to VPAM AND #01
9 x 19 mm QD PEP II/s
9 x 19 mm Action 4
9 x 19 mm Pist Pat 41

STANAG 2920: V50 = 300 m/s (1.1 g FSP)

* Details see test certificates, please request. | ** Weight specifications +-50g
